Colourful Ones & "Full Flap" (update 12/09/13) 1/200th Scale

#1 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 02 February 2009 - 11:39 PM

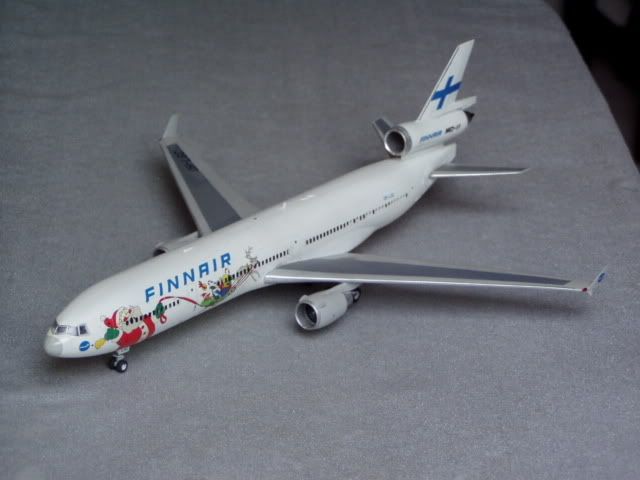

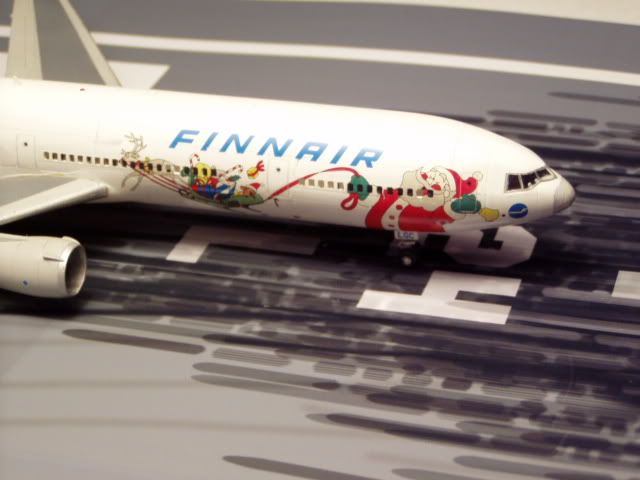

MD-11 Finnair (Santa Claus)
Posted ImagePosted Image

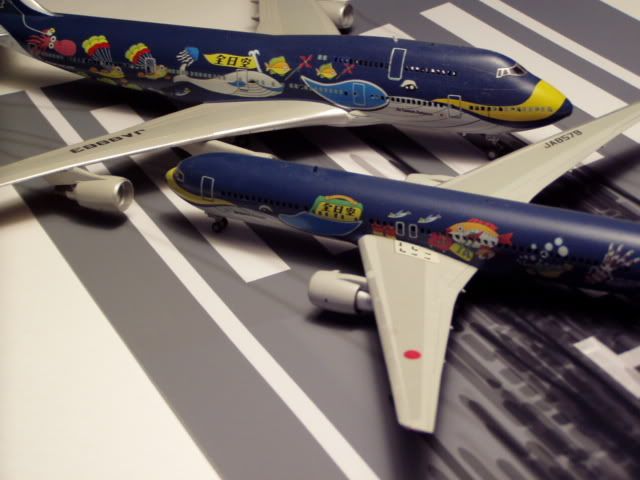

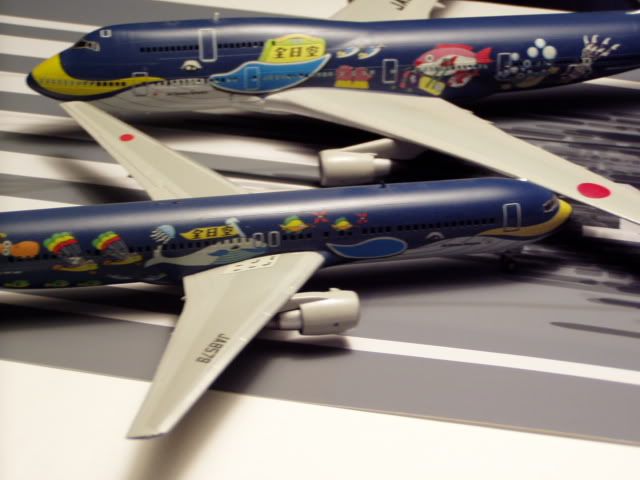

Sister Whales ANA
Posted ImagePosted Image

L-1011 Tristar Prototype
Posted Image

I hope I didn't bore you !
See you soon.

This post has been edited by AV O: 26 December 2012 - 11:52 PM


#2 User is offline   oldHooker

  • "As if hell itself had entered the battlefield"
  • PipPipPipPipPipPipPip
  • Group: Members
  • Posts: 1,211
  • Joined: 03-October 06
  • Member ID: 7933
  • Gender:Male
  • Location:North Carolina

Posted 03 February 2009 - 03:33 AM

You sure have a fine 200th collection there, and they all look SO good! :thumbsup:

Thanks, and welcome!
Frank

#3 User is offline   carioca

  • Tenax Sniffer (Open a window!)
  • PipPipPipPipPip
  • Group: Members
  • Posts: 299
  • Joined: 18-August 07
  • Member ID: 10715
  • Gender:Male
  • Location:Rio de Janeiro - Brazil

Posted 03 February 2009 - 03:36 AM

Hi AV O!

Welcome to ARC!

No, you didn't bore us at all! You have some great models there, and I'm quite a fan of the 200 scale when we talk big birds. I prefer the 144 only for narrow bodies...

It's a pleasure to see your builds, we're all here to learn from each other, all the time - it's never too much!

There's an airliner group build running at the "Group Builds" forum. If you got something boxed in your stash and begging to be built, share the build with us!

Regards

Eduardo

#4 User is offline   le_boz

  • Philippe Bozzoli
  • PipPipPipPipPip
  • Group: Validating
  • Posts: 315
  • Joined: 08-August 08
  • Member ID: 13319
  • Gender:Male
  • Location:Shanghai, China

Posted 06 February 2009 - 10:18 AM

Hey, Very nice kits,

I really like the 747 ANA whale sheme I am planning to do it on 144, Any advise for this ?

Good Job,

Boz :cheers:

#5 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 06 February 2009 - 03:01 PM

View Postcarioca, on Feb 3 2009, 04:36 AM, said:

It's a pleasure to see your builds, we're all here to learn from each other, all the time - it's never too much!

Eduardo


I worked harder on some. I have always wanted to give them a "live" attitude. So one day, I started cutting, shaping, sanding,..
At last, one day...
Posted Image
Posted Image
Posted Image
Posted Image

You have experienced this last moment of flight. Engines at idle, almost no noise, then... touchdown, roaring reverses.... Only the tyres smoke is misssing !
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

This post has been edited by AV O: 09 October 2010 - 08:29 AM


#6 User is offline   carioca

  • Tenax Sniffer (Open a window!)
  • PipPipPipPipPip
  • Group: Members
  • Posts: 299
  • Joined: 18-August 07
  • Member ID: 10715
  • Gender:Male
  • Location:Rio de Janeiro - Brazil

Posted 06 February 2009 - 05:07 PM

DUUUDE!

Look at those flaps, slats, spoilers, reversers... AMAZING!

Would you please post some more detailed pics of these incredible builds?!?! They're awesome! Great job!!!

Regards

Eduardo

#7 User is offline   le_boz

  • Philippe Bozzoli
  • PipPipPipPipPip
  • Group: Validating
  • Posts: 315
  • Joined: 08-August 08
  • Member ID: 13319
  • Gender:Male
  • Location:Shanghai, China

Posted 06 February 2009 - 05:46 PM

WHOWWW,

I am really impressed ! You did an outstanding job there, Congratulations, :worship:

Boz

#8 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 06 February 2009 - 07:26 PM

So the 737's quartet turned into a quintet.

The 737-300 which does not exist in this scale (this may be a reason why you see so many decals on sale for this type) is a shortened -400.
Posted Image
Posted Image

Here is a Boeing Family picture :
Posted Image

This post has been edited by AV O: 06 October 2010 - 07:51 PM


#9 User is offline   David Walker

  • "It's only a model"
  • PipPipPipPipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 24,138
  • Joined: 06-November 03
  • Member ID: 1476
  • Gender:Male
  • Location:Colorado

Posted 07 February 2009 - 06:41 AM

That's remarkable work in any scale, but considering it's 1/200 I'm really impressed.

#10 User is offline   HOLMES

  • Darth W3rd
  • PipPipPipPipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 21,067
  • Joined: 09-November 06
  • Member ID: 8197
  • Gender:Not Telling

  Posted 07 February 2009 - 05:11 PM

Hello and WELCOME... AV O.....WOW!! STUUNING !!! :D


Really love the Whale scheme..I bet that was one fiddly job ...


Simply BRILLIANT work ...


HOLMES. :)

#11 User is offline   le_boz

  • Philippe Bozzoli
  • PipPipPipPipPip
  • Group: Validating
  • Posts: 315
  • Joined: 08-August 08
  • Member ID: 13319
  • Gender:Male
  • Location:Shanghai, China

Posted 07 February 2009 - 08:50 PM

Hey dude,

I really would like to know where you got the info to design your flaps & slats on your models. They look so good and I would like to do the same for the 727 & 737.
Thank you for your help,

Boz

#12 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 20 February 2010 - 11:19 AM

View Postcarioca, on Feb 6 2009, 06:07 PM, said:

DUUUDE!

Look at those flaps, slats, spoilers, reversers... AMAZING!

Would you please post some more detailed pics of these incredible builds?!?! They're awesome! Great job!!!

Regards

Eduardo


To answer your request, here are a few more pictures :
DC-10
Posted ImagePosted Image
Posted Image
[Posted ImagePosted Image

L-1011 Tristar
Posted ImagePosted Image
Posted Image

This post has been edited by AV O: 17 June 2012 - 01:18 PM


#13 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 20 February 2010 - 11:27 AM

As they would not fit on the same post, here are more :
B-727-200
Posted Image
Posted Image

B-737-300
*These were used day shift for charter flights and after QC pallets were loaded, used night shift for mail transport. Hence the "La Poste" yellow sticker at the back.
As said above, this kit does not exist as such. It is a shortened -400.
Posted Image
Posted Image
Posted Image

B-747-300
*This "2 in one" airplane represents 2 of the 4 747-300 - F-BTDH / DH- Air France inherited from UTA.
In Fact these two were -200 Combi turned into SUD. The two others, F- GETA / TB were real -300, Combi as well. UTA used them on their African network in 7 or 11 pallets versions depending on the season. Air France used them in a high density lay out on their West Indies network.
Posted Image
Posted Image

B-747-400
*This "2 in one" airplane represents the two 747-400 - F-GEXA / XB - Air France inherited from UTA.
F-GETB being a Combi, had to be the left side as can be seen in the first part of the topic.
Posted Image
Posted Image

This post has been edited by AV O: 15 June 2012 - 03:58 AM


#14 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 19 March 2011 - 11:28 AM

Some time ago I had presented these "broken wings".

The earlier version B-737-200 was missing though.
Here is what I managed to do, trying to build how this tricky system works.
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image

This post has been edited by AV O: 19 March 2011 - 11:05 PM


#15 User is offline   TheFlyingDutchman

  • Step away from the computer!
  • PipPipPipPipPipPip
  • Group: Members
  • Posts: 916
  • Joined: 31-May 06
  • Member ID: 7211
  • Gender:Male
  • Location:Haarlem, The Netherlands

Posted 20 March 2011 - 03:13 PM

Very nice work!! I like your representation of the bucket thrust reversers on the 737-200.

#16 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 15 June 2012 - 03:36 AM

View PostTheFlyingDutchman, on 20 March 2011 - 03:13 PM, said:

Very nice work!! I like your representation of the bucket thrust reversers on the 737-200.


I messed up with the reverses (on the pictures above), so I reworked them.The exhaust body was too short and the buckets were intermeshing with the flaps.

I had to work on the flaps as well. On the 737-200 a small part remains attached to the engine pylon while moving back.

Yes, the landing is very short this time again.
It is because the buckets were not visible on the runway, but are on the stripes background.

Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image

Airbus details next.

#17 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 15 June 2012 - 03:40 AM

The Airbus A300 is now completed. It has not been without trouble.

This one being the first one, I fumbled to decide how to handle the wing and set which order to fix the elements on :
Every little movement causing a piece previously glued to fall down (Slats and spoilers have a very small contact surface) !!!
Holding it too tight causing the finger prints miserably printing !

Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image

This post has been edited by AV O: 15 June 2012 - 03:50 AM


#18 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 15 June 2012 - 03:46 AM

The Triple 7 was next:
Posted ImagePosted ImagePosted ImagePosted Image
Posted ImagePosted Image

#19 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 15 June 2012 - 03:48 AM

A colorful brat following :
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image

#20 User is offline   AV O

  • Rivet Counter
  • PipPipPipPip
  • Group: Members
  • Posts: 117
  • Joined: 02-February 09
  • Member ID: 14739
  • Gender:Male

Posted 15 June 2012 - 03:48 AM

Following on :

A loooong time ago, Daco granted us with a B-737-300 and to go along with it, beautiful sets of decals for Western Pacific airplanes. They were also released in 1/200th scale. The major problem is that, as it has been said, Hasegawa released the B-737 in both -500 and -400 types, but as no Japanese airline used the -300, this type never came out.

The solution was to customize and shorten a -400. The method proposed in an other thread may be agood one. I used my own, having been satisfied with it when I made the Aéropostale 737-300 (see above).

I am not fully satisfied with the result, as the decals are rather thick (and tend to break when drying on sharp curves) and have quite a lot of overlapping areas.
Softening liquid is required.
Daco instructions apply for its own version (1/144), and he probably had no chance to try them on this model !
Therefore, concerning some areas, these instructions are not suitable for the Hasegawa’s.
Unfortunately, I realized it to late, the decals already wet and on the kit, which explains they are a little wrinkled and damaged at some places as I had to remove them (with the damages and the rage you can imagine).
So, the result in the back part around the fin and the back door is not accurate if you compare it with a picture of the real airplane. The orange shape aft of the wing is also set too low.

But I was satisfied with the way I made the fuselage cuts as the windows and other decals fit on the fuselage.
On this very type, the problem with the decals occurs in the back part. On this kit, the horizontal tail is one piece and is set through the fuselage, while the vertical tail comes last to lock it from the top.
The tail decals must be applied first with the vertical tail on, then cut around the base of it, make the slots for the horizontal tail to go through, remove the fin and then assemble the tail elements back together. This last stage can wait until the end. This will apply for other decals such as The Simpsons.

The decal sheet is full of tiny details and you'll need a lot of patience to look out for the numbers and the order they must be put on.
I have a spare set and intend to make the next one a perfect one. But Broadmore seems to be a nice option too. What about the Simpsons ! You just the need too many 737s.

I can reassure those who made this kit before on one point : the rings removed from the -400 can be used on a -500 to build a-300.

Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image
Posted ImagePosted Image

This post has been edited by AV O: 25 June 2012 - 04:35 PM
